Senses 5417 Panel PC - 97170992

17" display, Intel® ATOM E3845, 2GB RAM, 64GB SSD 10-point PCAP touch screen Base Kit - Iss B

  • Projected Capacitive Multi-Touch (10 points)
  • DC 12V ~ 24V input with 3-pin terminal block connector (optional)
  • Wide Operating temperature
  • IP65 rated front
  • Long Life Cycle

The Senses 5400 Industrial Panel PC takes advantage of Intel® Atom™ E3800 family to operate under extremely hot and cold conditions.

The operating temperature can be as low as -25°C up to 70°C with its fan-less design.

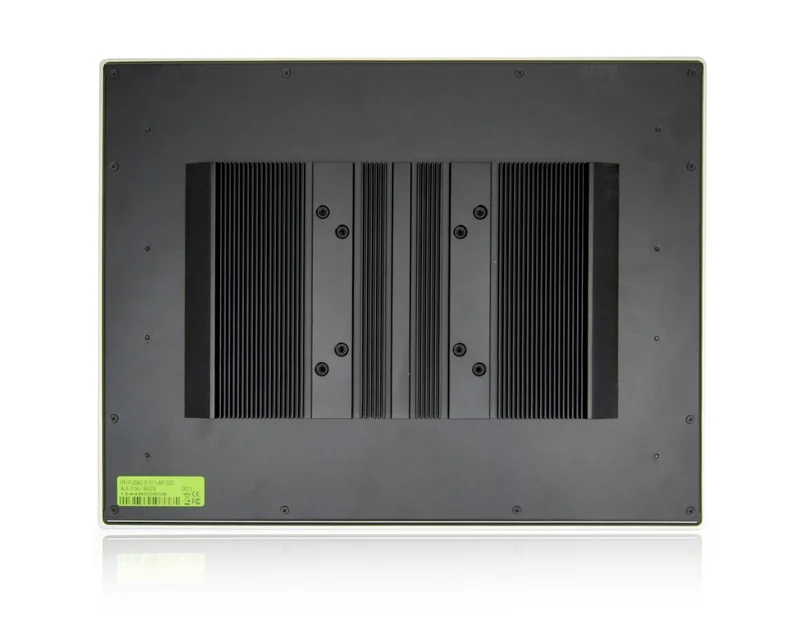

The cable-less structure helps to optimise thermal dissipation as well as makes it more durable in rugged environments.

Equipped with a high resolution panel and a sleek, responsive, multi-touch screen and an IP65 rated front bezel and true-flat design.

15 year life cycle.

Learn more about the Amplicon Industrial Panel PC range

Screen Size
17 inch
Touch screen
Projected capacitive touch
CPU
ATOM®
CPU Generation
Bay Trail
OS Support
Windows 10
Windows 10 IoT
Windows 7
Windows Emb Std 7
Linux
Memory
2 GB
Memory Type
DDR3
Storage
32GB SSD
Expansion
mPCIe
CPU Cores (Physical)
4
Max Memory
8 GB
Mounting
Panel
VESA
Senses 5417 Panel PC Datasheet
Datasheet 1.89 MB
senses-roadmap
Roadmaps 8.02 MB
