Amplicon Impact 4000 series
Ordenador industrial 4U montado en rack, placa madre Intel, procesadores iCore, bajo coste
- 3 x PCIe x16 expansion (1 x 16 REV.4.0, 1 x 4 Rev.3.0, 1 x 1 REV.3.0)
- Gigabit Ethernet LAN port
- 8 x USB ports
- 4 x SATA ports (RAID 0/1/5/10)
- Chassis can house up to 5 x 3.5" HDDs

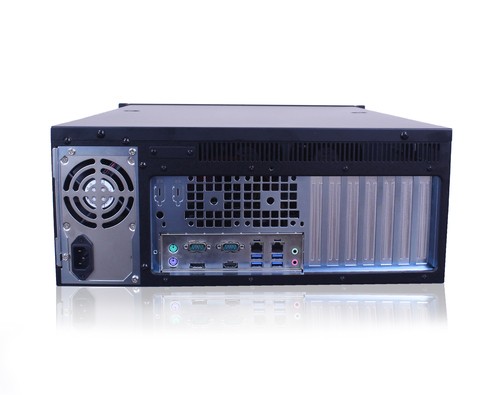

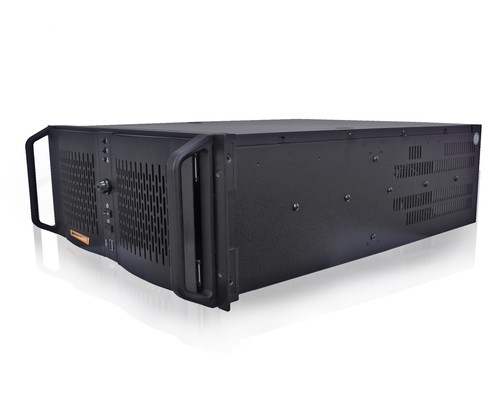

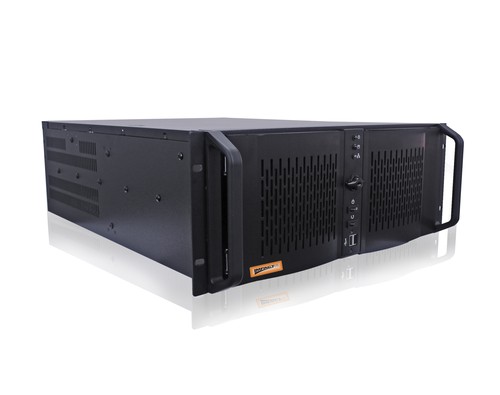

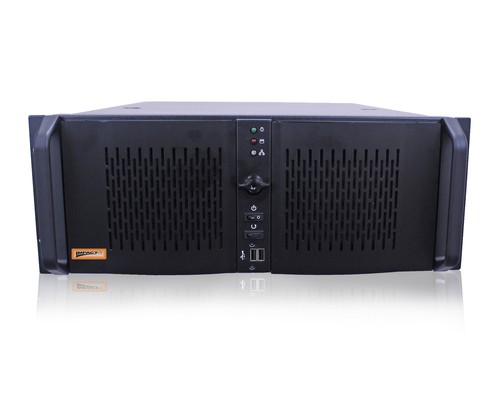

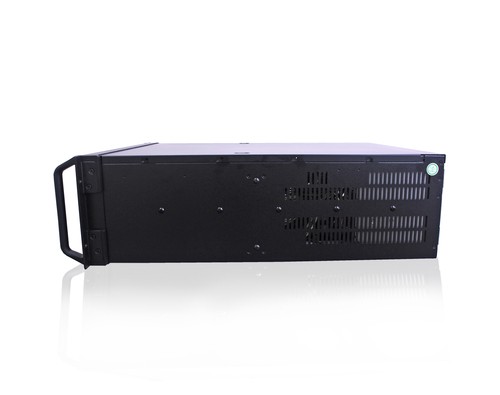

The Amplicon Impact 4000 Industrial PC comprises 4U rackmount computers with Intel motherboards and industrial grade components including the power supply and heavy-duty steel chassis.
The Impact 4000 rugged computers support up to 4 x 3.5" HDDs. As with all our other industrial computers, they can be tailored to suit customer requirements.
Windows 11 overview video available on Amplicon YouTube Channel
Learn more about the Amplicon Industrial Rackmount PC range.
- Chassis Size
- 4 U
- Chipset
- Intel® B660
- Memory Type
- DDR4
- OS Support
- Windows 11
- Linux
- Windows 10
- Windows 10 IoT
- CPU
- Core i5
- Core i7
- Core I9
- Memory
- 8 GB
- Max Operating Temperature
- 45 °C
- CPU Generation
- 12th (Alder Lake)
- Mounting
- Rack
- Expansion
- PCIe
- M.2
- Storage
- 128GB SSD
- CPU Cores (Physical)
- 6
- 8
- Chassis depth
- Standard depth
- Brand
- Impact
- Impact_4120
- Datasheet 2.69 MB
- Amplicon-2U_to_4U-slide-rail-datasheet
- Datasheet 571.48 KB
Modelos disponibles (3)
Amplicon Impact 4123
Código 97221697
3PCIe x16 (x16,x4,x1), Intel® Core i5-12500E AL (6C 12T) 8GB RAM 128GB SSD
Amplicon Impact 4124
Código 97221698
3PCIe x16 (x16,x4,x1), Intel® Core i7-12700E AL (8P/4E 20T) 8GB RAM 128GB SSD
Amplicon Impact 4125
Código 97221699
3PCIe x16 (x16,x4,x1), Intel® Core i9-12900E AL (8P/8E 24T) 8GB RAM 128GB SSD
