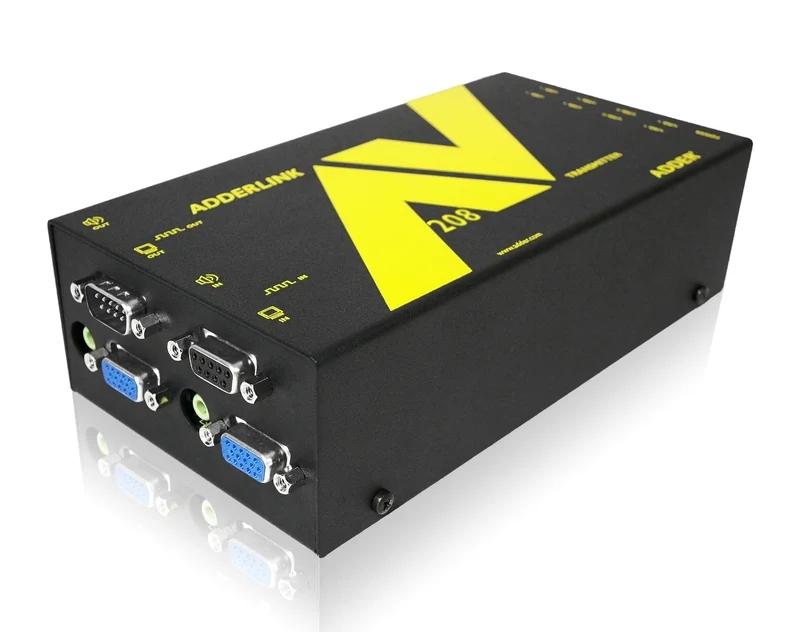

AdderLink AV208T - 96080971
AdderLink AV208T T6 8 port AV extender transmitter + UK lead
- Extends video and audio across a single CATx cable
- Full RS232 support for control functions
- High resolution video quality (up to 1600 x 1280) and distances up to 300m
- Transmitters with cascade ports
- Receiver units with fully adjustable de-skew ensuring maximum video quality
- Use as stand alone or rackmount 16 modules across 3U
- All metal construction
The AdderLink AV200 series comprises audiovisual extenders delivering high video resolutions and quality audio using standard CAT5 (or higher) and RS232 cables.
The AV200 series offers cost effective solutions by eliminating the need for fibre optic cabling or a separate computer or controller installation located next to each display. Covering up to 300m, transmitters can output to up to eight cascadable receivers. With full RS232 support video display panels can be controlled and interrogated remotely.
Typical applications include path finder displays in shopping malls and estate agent information displays.
With all KVM products, Amplicon recommends the use of shielded CATx cabling.
- KVM Category
- Extend
- Distance
- 10 m
- 30 m
- 50 m
- 100 m
- 150 m
- 300 m
- Max Distance
- 300 m
- Connectivity
- VGA
- Serial
- AdderLink AV208T Datasheet
- Datasheet 273.16 KB
